‘The Biggest Rock Band On Earth’ Relies On Yamaha
Rockin’1000 That’s Live has already become so successful that, for the past two years, ‘the biggest rock band on earth’ has had to relocate to the bigger Stadio Artemio Franchi in Firenze (Florence), around 2.5 hours from Cesena.
Yamaha Commercial Audio Italia is a technical partner of the event and this year staff were faced with the huge task of mixing Front of House and monitors for an 18 song, two-hour performance of rock classics by a band of over 1500 singers, guitarists, bass guitarists, drummers, keyboard and wind players.

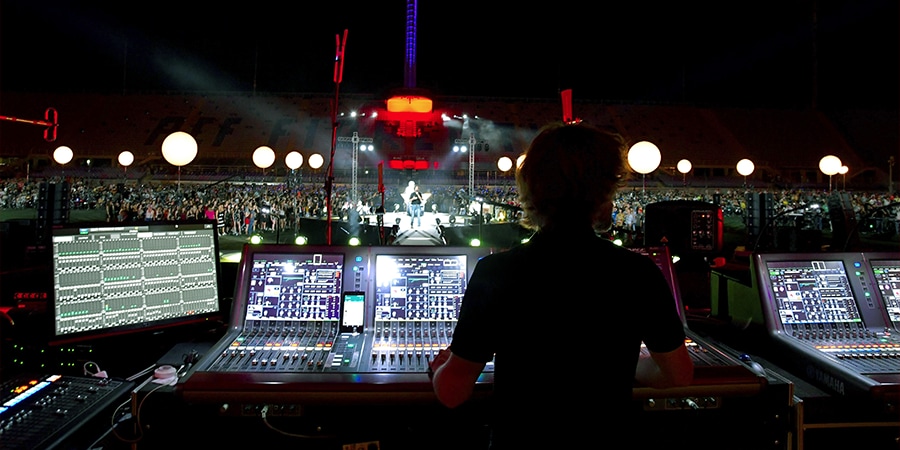

With a channel count of over 300, a RIVAGE PM10 digital mixing system was used for the FoH mix, featuring two CSR-10 control surfaces, four RPio622 and one RPio222 I/O racks on a TWINLANe fibre optic ring. This system worked side-by-side with a Dante network, which included QL5 and QL1 digital mixers, a Rio1608-D2 I/O rack and two RMio64D Dante/MADI conversion I/O racks to manage monitoring for all the musicians, as well as multitrack recording and communication with the main PA amplifiers.
“The 1500 musicians were grouped by instrument and split in two, so there were two ‘drum areas’, two ‘bass areas’, two ‘guitar areas’ and so on,” says Yamaha’s Alessandro Arturi. “As you can imagine, several hundred drum kits and electric guitar amplifiers make a lot of noise by themselves! We supplemented this for the mixes with microphones - either close miking or one microphone per two or three instruments.
“The vocalists had one microphone between two people and we also distributed a number of ‘jecklin disk’ stereo microphones throughout the performance area, suspended about four metres above the musicians.

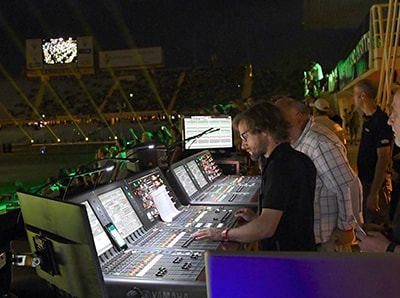

All microphones were routed to the five RPio units and then to the RIVAGE PM10’s core ‘brain’, the DSP-R10. A pre-mix was done on one of the CSR-10 control surfaces, with the main PA mix done on the other. Monitors were managed by the QL5 console, which received a pre-mix from the RIVAGE PM10 system and then routed different individual mixes to each group of instruments. Within each group, each performer had a wireless headphone to hear the mix.
“With so many microphones and loud instruments, feedback was obviously a potential major problem,” says Alessandro. “So it was important that every musician had an in-ear system for monitoring and that all instruments and microphones were very carefully arranged to avoid spill as much as possible.” Sound designer for the event was Francesco Penolazzi, with the FoH mix overseen by Luca Stefani. The performance was kept in time by conductor Peppe Vessicchio.
“Producing a clear, coherent sound from so many musicians is a challenge, but this event is also very enjoyable for both the production teams and all the musicians,” says Alessandro. “Music should be fun and we are very glad that Yamaha systems were again able to make such a positive contribution. We look forward to next year, when maybe there will be even more musicians to mix?”
Le système RIVAGE PM10 représente la nouvelle génération de systèmes de mixage numériques Yamaha PM. En termes de qualité sonore, d’ergonomie, de fonctionnalités, de fiabilité, de flexibilité, etc. , la RIVAGE PM10 est un produit phare qui annonce l’orientation des générations futures.
Cette surface de contrôle offre deux grands écrans tactiles et 38 faders, et permet d'effectuer toutes les opérations générales du système RIVAGE PM10.
Le DSP-R10 est un puissant moteur DSP qui sert de noyau pour le traitement du signal et le contrôle des systèmes RIVAGE PM10, PM5 et PM3.
Les consoles de la série QL intègrent des fonctions de mixage, de traitement et d'assignation parfaitement adaptées à des spectacles vivants de petite à moyenne envergure, à des événements d'entreprise, à l'installation fixe, etc.
Racks de la série R (A/N N/A) : 2è génération
La deuxième génération des racks d'entrée/sortie (AD/DA) compatibles Dante de la série R apportent des améliorations significatives au niveau de la qualité sonore, de la fiabilité, et de la confirmation visuelle des statuts. Avec la surface de contrôle CSD-R7, ces racks d'entrée/sortie sont des composants du système de mixage numérique RIVAGE PM7. Ils s'utilisent également avec les consoles de mixage numériques des séries CL et QL.
