Guide d'installation AV

Yamaha AV Receiver Setup Guide App

AV SETUP GUIDE is an application that assists you with cable connections between AV receiver and source devices as well as AV receiver setup.

This app guides you through the various settings such as speaker connections, TV and source device connections and assigning the power amp.

System illustrations and actual AV receiver images help you understand easily how to make the connections between devices.

If your receiver is network capable, setting parameters on this app will automatically be copied to your AV receiver for simple setup.

Guide d'installation AV

Application d'aide à l'installation des amplificateurs Home Cinema Yamaha

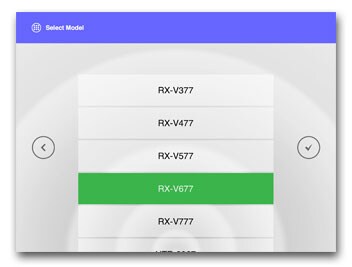

AV Receiver Model Select

Select your model

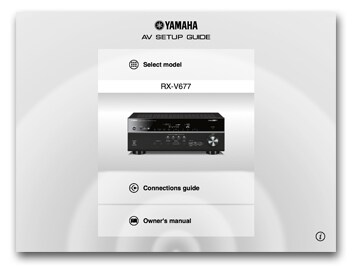

Home Menu

Your model is displayed.

Start connection guide or view owner's manual.

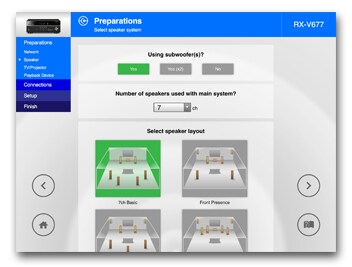

Speaker Layout

Based on your selected speaker confiuration for the room, this app shows you all the possible speaker layout avaialble to select.

Source Device Select

Select all connecting devices from the list.Check input/output terminals on these devices.

Confirmation of TV/source devices and cables

Based on Source Device Select result, this app shows you all necessary interconnection cables.

TV / Source Devices Connection

Based on your selection of input/output on connected devices, this app shows you to which input / output terminals on the receiver these devices need to be connected.

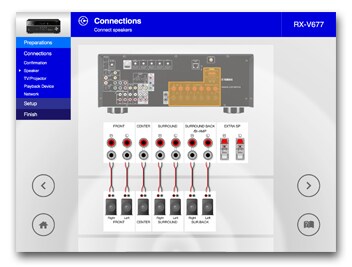

CONNECTIVITE

Based on your selected speaker layout in earlier step, this app shows you to which speaker terminals the speakers need to be connected.

Automatic Setup via Network

Setting parameters in this app will be automatically copied to your AV receiver.

*This function is supported only by network capable models.

YPAO Setting Guidance

YPAO automatically optimize the speaker settings to suit your room.

This app guides you how to engage YPAO and checks if the speaker connection is correct.

*Certain models will skip this step.

CX-A5100, CX-A5000

RX-V3060, RX-V2060, RX-A1060, RX-A860, RX-A760, RX-A660, RX-A3050, RX-A2050, RX-A1050, RX-A850, RX-A750, RX-A550, RX-AS710, RX-AS710D, RX-A3040, RX-A2040, RX-A1040, RX-A840, RX-A740

RX-V3081, RX-V2081, RX-V1081, RX-V781, RX-V681, RX-V581, RX-V481, RX-V481D, RX-V381, RX-V3079, RX-V2079, RX-V1079, RX-V779, RX-V679, RX-V579, RX-V479, RX-V379, RX-V3077, RX-V2077, RX-V1077, RX-V777, RX-V677, RX-V577, RX-V477, RX-V377

*Certains modèles ne sont disponibles que dans certains pays.

OS: iOS 6.0, Android OS 4.00 or higher

Screen Size: 7" or higher

Screen Resolution: 1024x768 or higher

* Compatibility with certain tablet devices can't always be guaranteed.

*Cette application ne collectera ou ne transférera jamais d’informations personnelles enregistrées dans votre tablette ou smartphone.

*Cette application utilise les fonctions suivantes pour son bon fonctionnement :

Connexion WiFi :

cette application nécessite l’activation du réseau WiFi sur votre appareil pour pouvoir piloter les appareils compatibles.

Accès à la musique stockée dans votre smartphone ou tablette :

cet accès vous permet d’écouter votre musique et de transférer les informations des titres vers votre appareil.
